60M HDMI Extender RJ45 Over Single Cat 5E/6/7 Support 1080P

Availability:

In stock

Rs.5,950.00 Rs.7,500.00


  • 100% Brand new and Quality Product
  • 1080p HDMI Extender:
  • Up to 196/60m Transmission
  • VIBRANT VIDEO & AUTHENTIC AUDIO
  • Plug & Play: Without any dip switch settings,just plug and play

ido.lk Online Shopping

In stock

Warranty: 6 Months

60M HDMI Extender RJ45 Over Single Cat 5E/6/7 Support 1080P

Buy 60M HDMI Extender RJ45 Over Single Cat 5E/6/7 Support 1080P Best Price in Sri Lanka. HDMI Extender RJ45 3D HDMI Extender Transmitter Receiver Over Cat5e/Cat6 Cable for DVD/PC/Set-Smart Box/PS3/PS4/ Computer and TV. Islandwide Delivery and Store Pickup Available.

Introduction:

The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost. The Extender is designed to supply long-distance transmission of high-definition signals.

Features:

1: Support highest video resolution 1080p/60Hz;

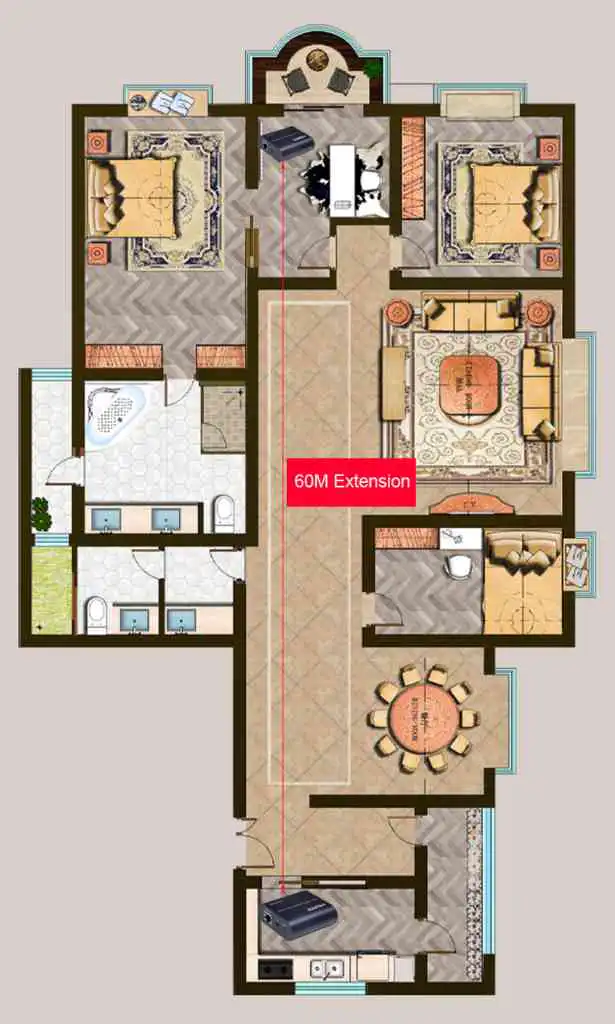

2: 60M long-distance transmission:
3: Low power consumption, low temperature, and high safety

Specifications:

  • Length of CAT-6/CAT-5E cable between Rx and TX ………………………Up to 60 meters
  • HDMI Input …………………………………….. 1080p/1080i/720p/576p/576i/480p/480i
  • HDMI Output …………………………………….1080p/1080i/720p/576p/576i/480p/480i
  • Max bandwidth……………………………………………………………………………150MHz
  • Max baud rate ………………………………………………………………………….. 4.5Gbps
  • Input video signal …………………………………………………………… 0.5~1.5Volts p-p
  • Output DDC signal …………………………………………………………… 5Volts p-p (TTL)
  • Input HDMI cable distance …………………………. ≤10m AWG26 HDMI standard cable
  • Output HDMI cable distance …………………………≤15m AWG26 HDMI standard cable
  • TX Max working current………………………………………………………………….300mA
  • RX Max working current………………………………………………………………….300mA
  • Power adapter format…………..Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
  • Operating Temperature range………………………………………………….(-15 to +45℃)
  • Operating Humidity range …………………………………5 to 90%RH (No Condensation)
  • Dimension (L x W x H) ……………………………………………………… 64x59x22 (mm)
  • TX Weight……………………………………………………………………………………….53g
  • RX Weight ………………………………………………………………………………………53g

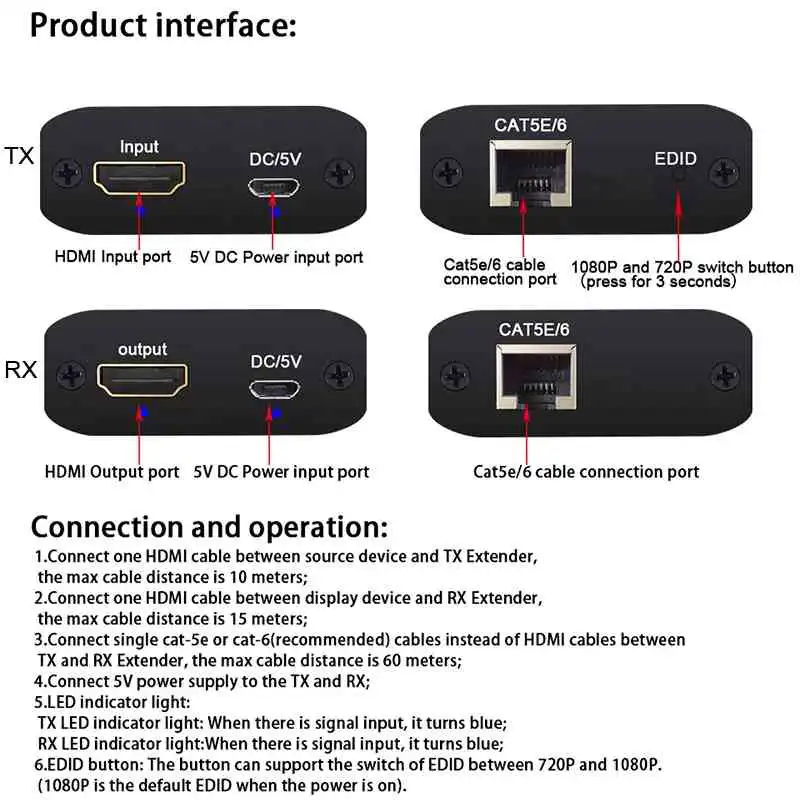

Connection and Operation:

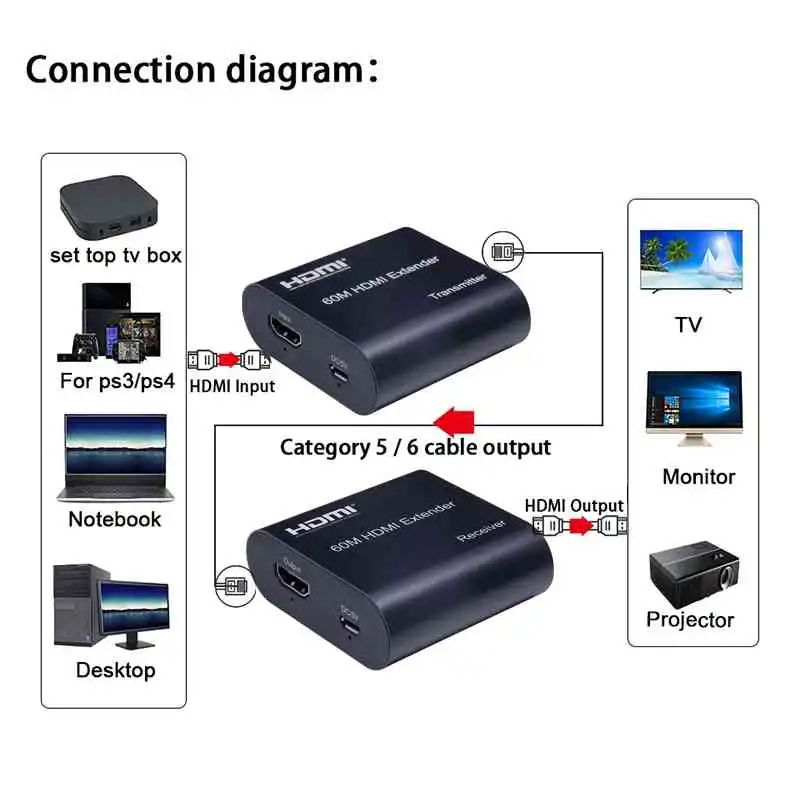

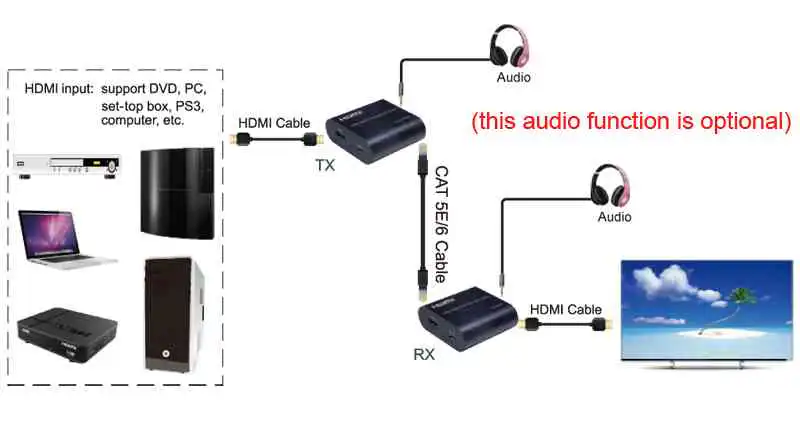

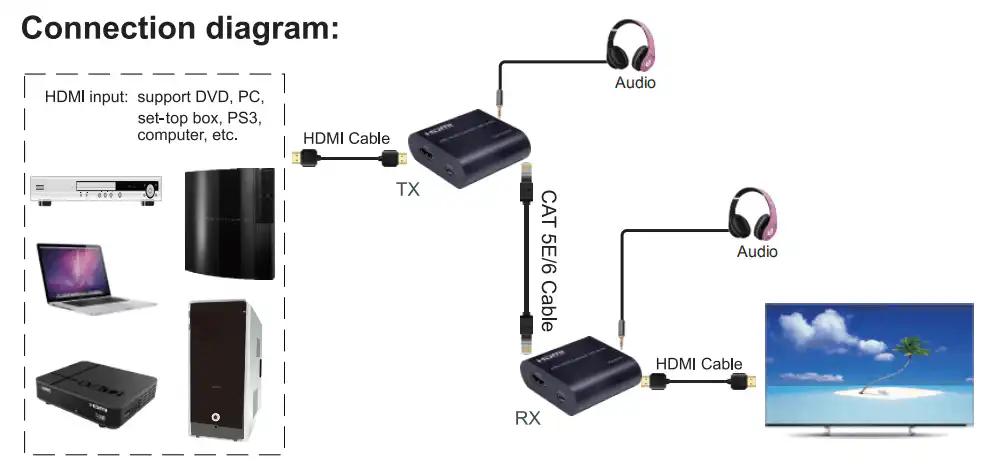

Connect one HDMI cable between the source device and TX Extender, the max cable distance is 10 meters;

  • Connect one HDMI cable between the display device and RX Extender, the max cable distance is 15 meters;

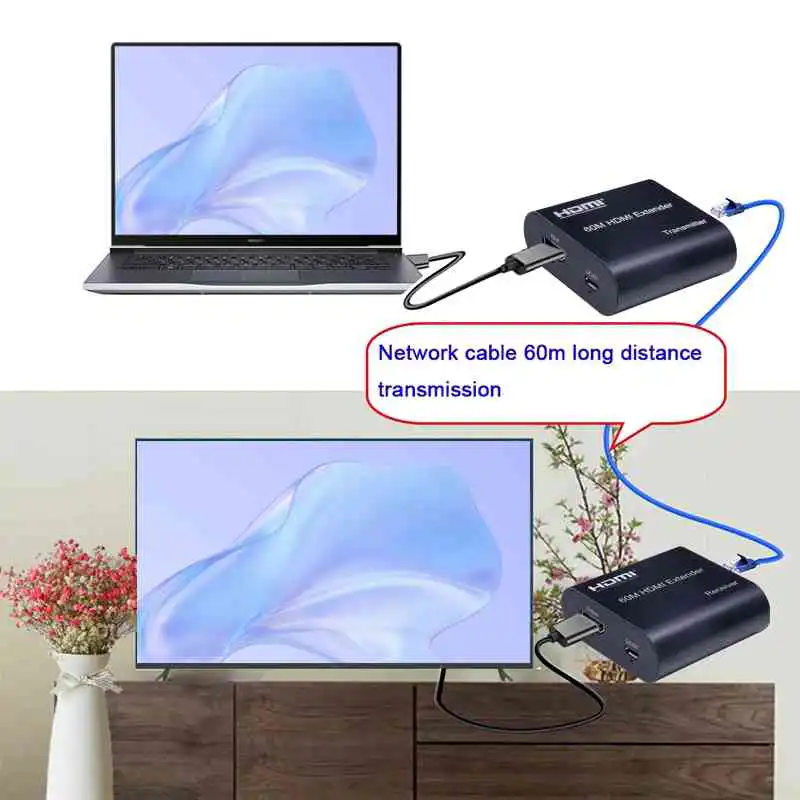

  • Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 60 meters;

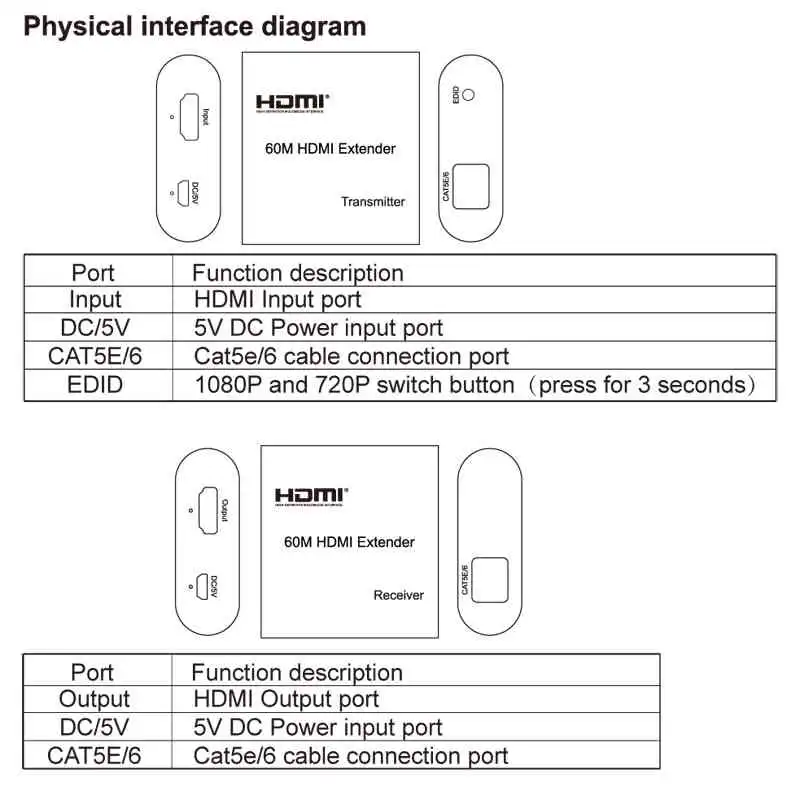

  •  Connect 5V power supply to the TX and RX;
  • LED indicator light:
    TX LED indicator light: When there is signal input, it turns blue;
    RX LED indicator light:When there is signal input, it turns blue;
  • EDID button: The button can support the switch of EDID between 720P and 1080P.
    (1080P is the default EDID when the power is on).

Package Included:

1. TX Extender x 1pc
2. RX Extender x 1pc
3. Micro USB cable x 2pcs
4. User Manual x 1pc
