Wire Tracker Cable Tester Multipurpose Lines Testing Device
Buy Wire Tracker Cable Tester Multipurpose Lines Testing Device in Sri Lanka. Multi-Purpose lines Communication Scanning and Testing Device. Check RJ45 Ethernet LAN Telephone Line Finder Checker RJ11.

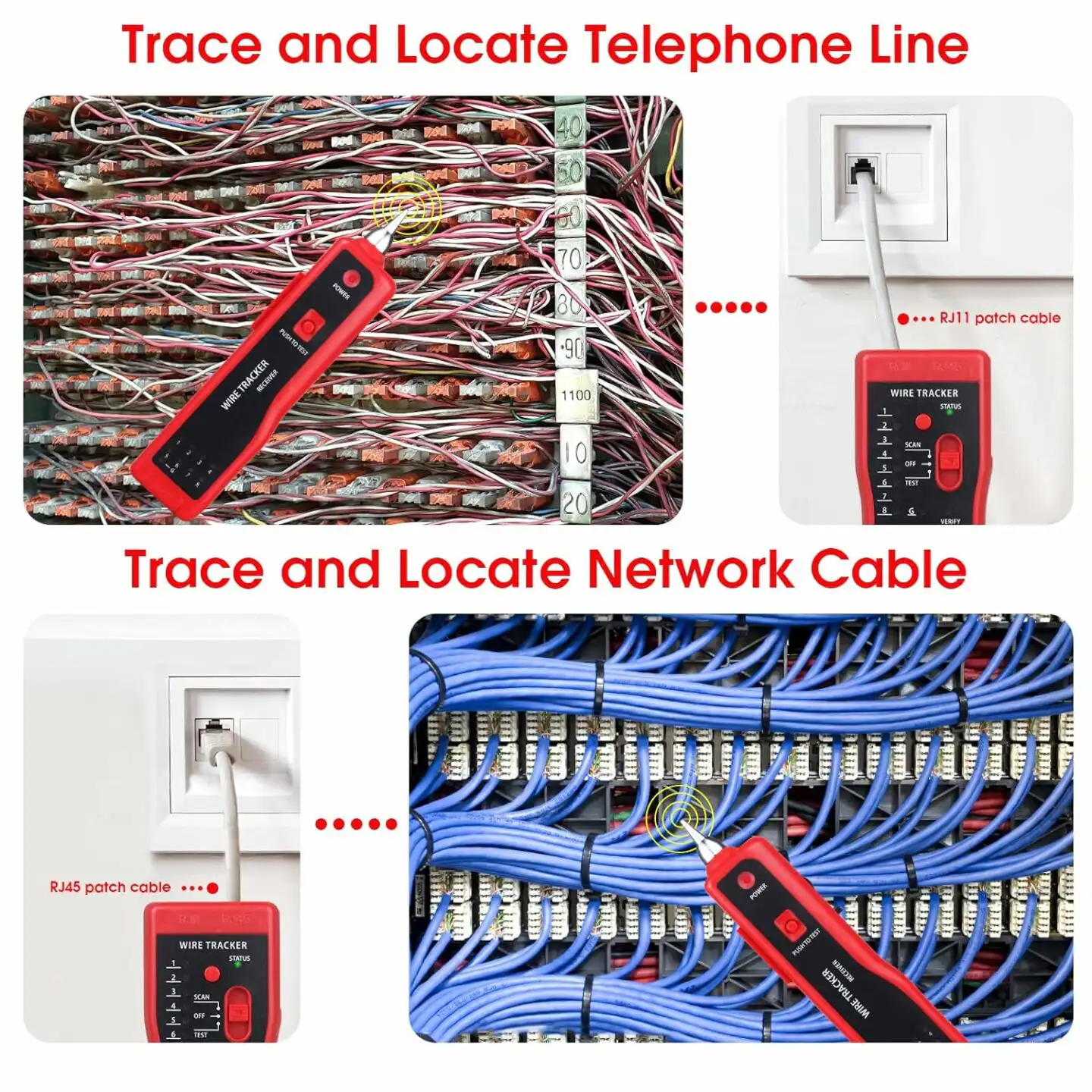

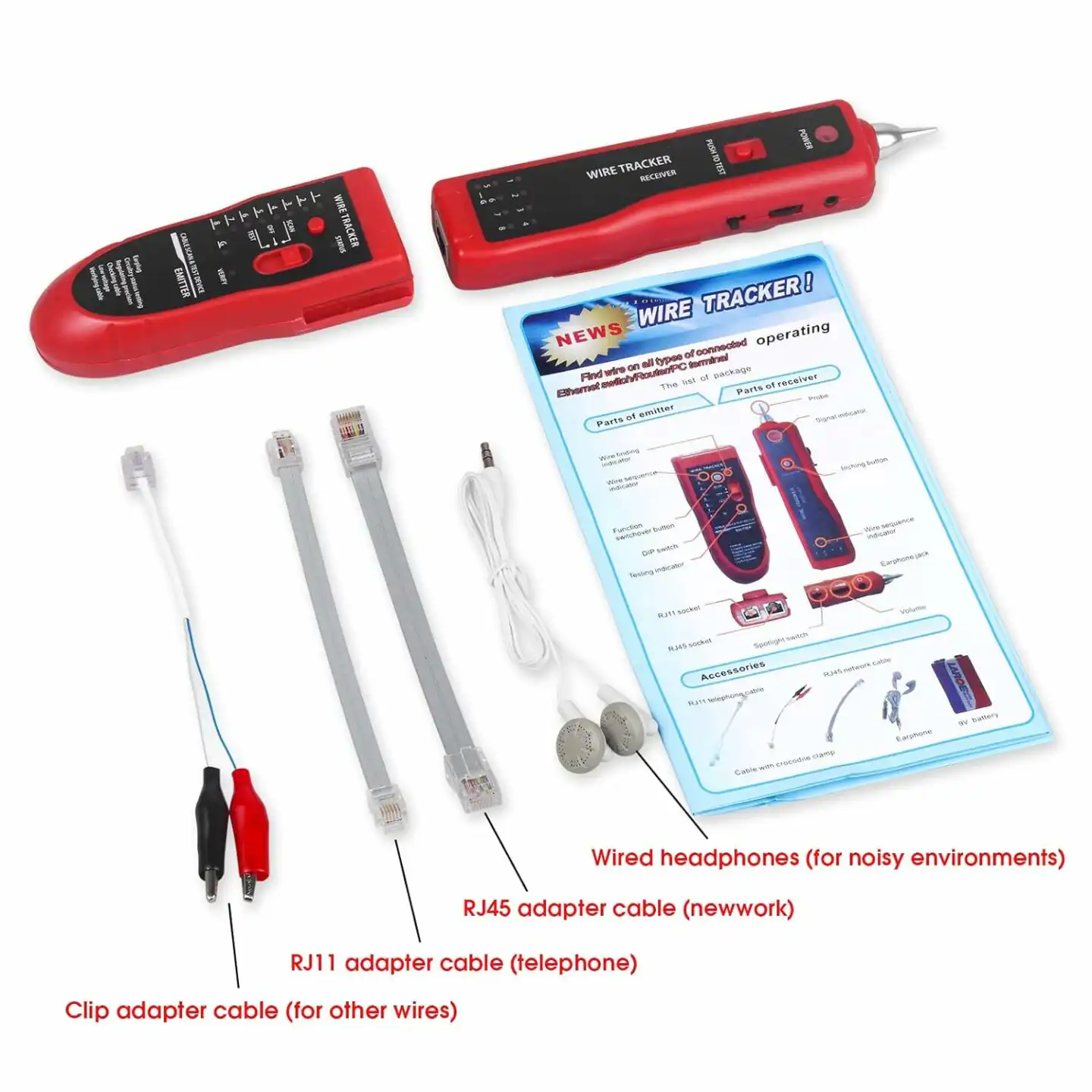

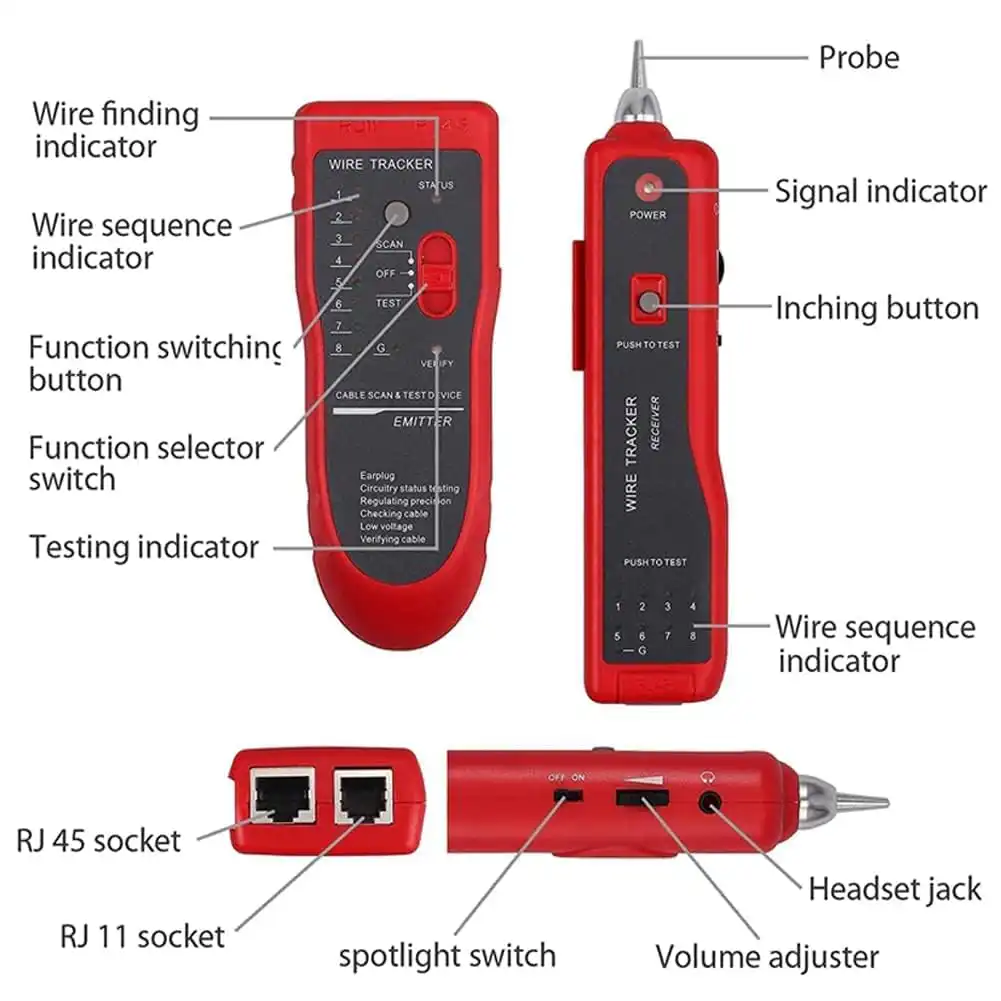

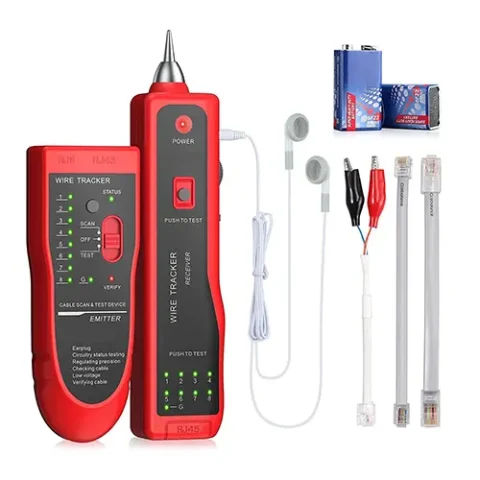

This professional wire tracking set is the latest instrument specialized in tracking various commonly used cables and wires. The set is composed of an emitter and a receiver and the pair allows us to find target wire among plenty rapidly and accurately.
The receiver has both sound and LED signal indicators. By comparing the volume of the “out” sound and the brightness of the LED. You can find the target wire with the highest volume and brightness.
This tracker can be used to trace a wide range of cables including telephone wires, computer network cables, TV cables, and other weak-current electric wires. Moreover, it has other useful functions including continuity testing, network cable sequence collation, open/short circuit testing, and DC-level testing.
- Cable Tester for UTP STP RJ45(manual switch)
- Automatic efficient scan for the miss wiring, disordered cable, open and short circuit
- TEL BNC test available(Adapter needed)
- Remotely test cable up to 1000ft in length ( remote kit included )
- Protective power switch for low power consumption
- High-quality protective case provides more secure protection

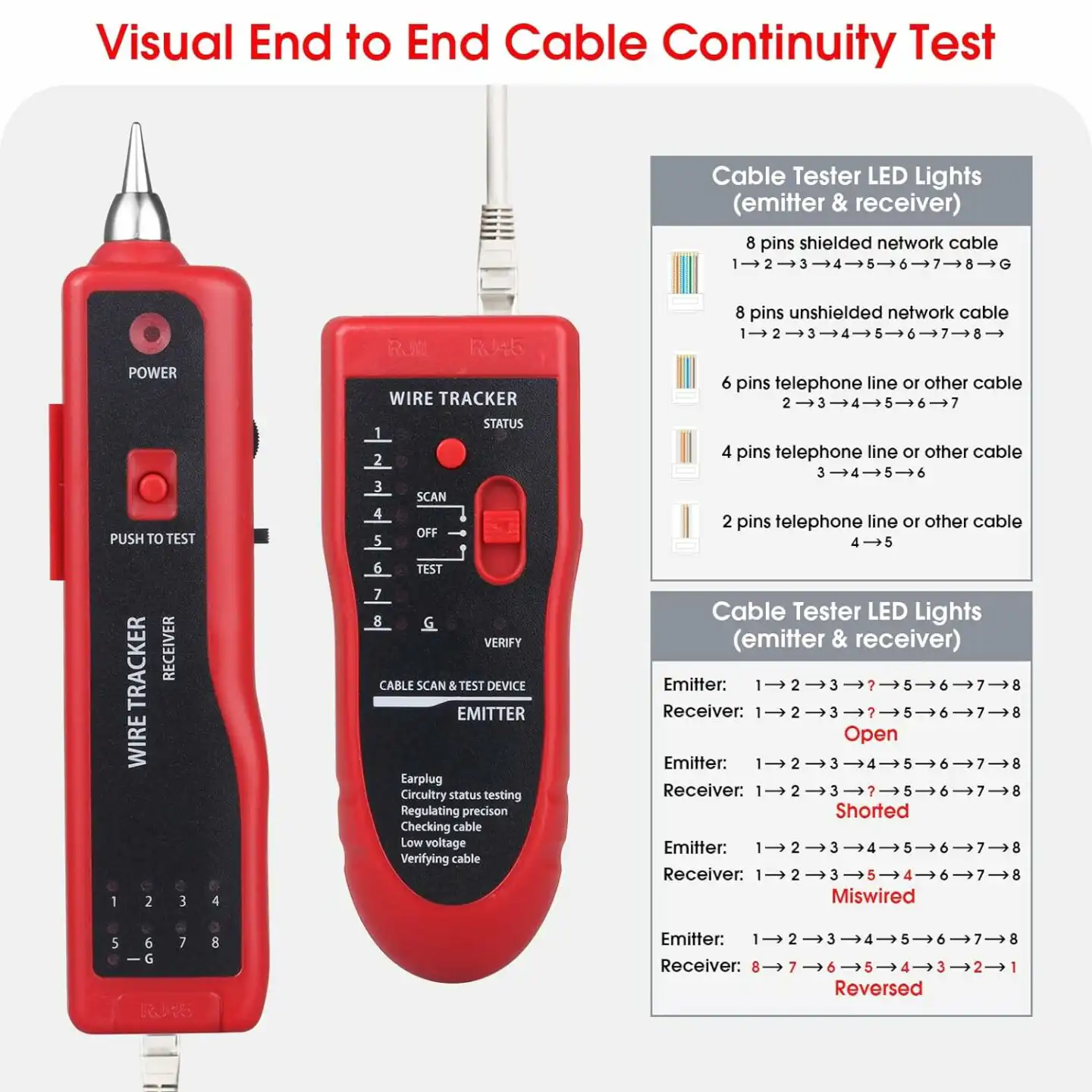

- Judge the continuity of the cables or wires
- Track the cables or wires, and diagnose the breakpoint
- Receiver the tone signal on the cables or wires (telephone line)
- Identify the state in the working telephone line (clear ring, busy)
- Send a single solid tone or a dual alternating tone to the object cables or wires.
- Working current: Tester: 10mA Receiver: 30mA
- Signal transfer mode: Digital signal
- Signal output level: 8Vp-p
- Signal transfer distance: 3Km
- Dimension: Transmitter: 126x49x34mm ; Reveiver:175x42x25mm
- Power: by 2 x DC 9V Battery
- Test distance: 5-300m.
